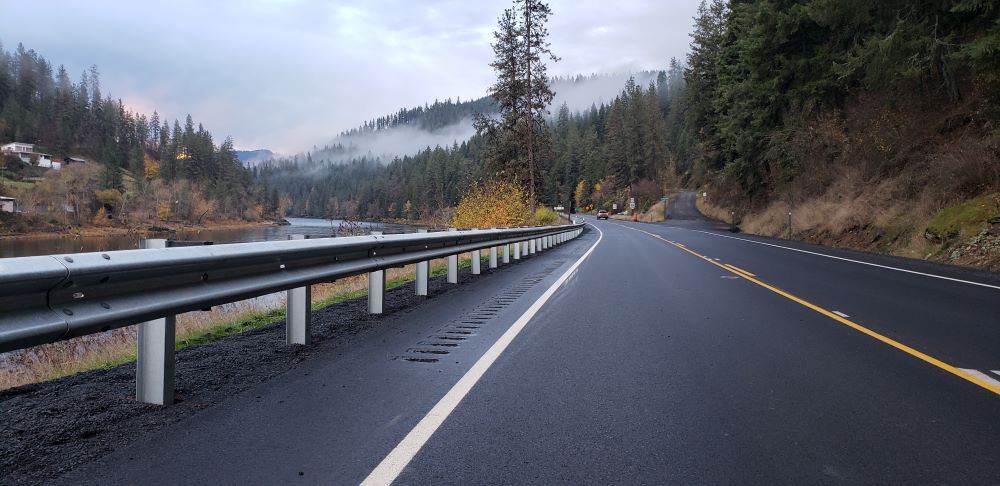

W-Beam Guiderail
MASH-compliant W-beam guiderail installation for highways, interchanges, and roadside hazard protection across the Mid-Atlantic.
W-beam guiderail is the most widely deployed roadside barrier system in the United States, and it remains the backbone of highway safety improvement work across New York, New Jersey, Pennsylvania, Delaware, and Maryland. Road Safety Systems installs complete W-beam systems — rail, posts, blocks, end terminals, and transitions — for state DOT projects, turnpike authorities, and general contractors throughout our Mid-Atlantic service territory.
W-Beam Guiderail Systems
The corrugated steel rail profile — shaped like the letter W — absorbs impact energy by deflecting and deforming in a controlled manner, redirecting vehicles back toward the travel lane while decelerating occupants at survivable rates. We install standard W-beam on steel posts with block-outs that maintain the rail offset needed to prevent vehicle snagging, as well as the Midwest Guardrail System (MGS) — the current MASH TL-3 tested standard adopted by most state DOTs, using a 31-inch mounting height and deeper post embedment for improved crash performance.
End Terminals and Transitions
End terminals are where the engineering matters most — an improperly installed terminal can spear a vehicle instead of attenuating the impact. We install MASH-tested terminal systems per manufacturer specifications, with foremen verifying installation dimensions and photo-documenting every terminal for as-built records. Guiderail-to-bridge-rail transitions and median barrier connections are installed per the approved transition drawings for each state DOT and turnpike authority we work with.
DOT and Turnpike Specification Compliance
PennDOT, NJDOT, the New Jersey Turnpike Authority, DelDOT, and MDOT SHA each maintain their own guiderail specifications, standard drawings, and material approval lists. We verify material certifications and coordinate closely with project engineers before materials arrive on site, and we produce as-built documentation packages — post driving logs, rail splice locations, terminal installation photos, and material certifications — for DOT project acceptance.
Ready to Start Your Project?
Get a free, no-obligation quote from our team of highway safety infrastructure experts.
Key Features
- MASH TL-3 tested Midwest Guardrail System (MGS)
- Standard W-beam and Thrie-beam rail profiles
- Steel and composite block-out options
- MASH-tested end terminal systems
- Guiderail-to-bridge-rail transitions
- As-built documentation for DOT project acceptance
Applications
Technical Specifications
| Rail Profile | W-beam (2-wave) and Thrie-beam (3-wave) |
| Post Type | Steel, per DOT standard drawings |
| Mounting Height | 31 inches (MGS standard) |
| Test Level | MASH TL-3 (NCHRP 350 TL-3 legacy systems) |
